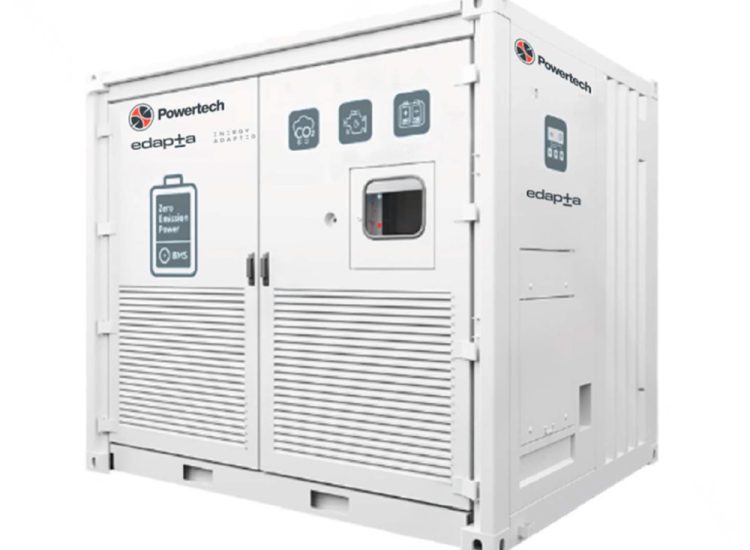

Edapta HPS-250-430

Containerised hybrid power system

Features

  • All-In-One design, highly integrated, plug and play, compatible with many brands of diesel/gas engines.
  • Built-in 13.3 inch touch screen, remote monitoring, control, diagnosis, and maintenance.
  • EMS controls generator to run at its highest efficiency power rating, then turns off.
  • Reduce fuel consumption, lower carbon emissions, contribute to sustainable development goals.
  • Optional cloud platform: remote maintenance, realtime big data analysis, integration control on cloud and edge devices.
  • The generator can be periodically turned off for maintenance requirements, or to provide silent operation overnight.

Product Details

Model HPS-250-430

Electrical Parameters

PCE Power

  • 250 kVA: Continuous
  • 2750 kVA: 10 minutes
  • 300 kVA: 1 minute
  • 313 kVA: 10 seconds
  • 375 kVA: 0.2 seconds

Continuous AC Current 361 A

Peak AC Current (0.2s) 541 A

AC Fault Current 800 A

Rated Voltage 400 VAC

Wiring Method Three-phase 3P + N + PE

On/Off-grid Switching Settings Yes

On/Off-grid Switching Time 20ms + contactor switching time

Battery Parameters

Battery Energy Storage 430 kWh

Battery Type Lithium-iron phosphate (LFP)

Nominal Voltage 768 V

Maximum Continuous Charge 1C @ 25℃

Maximum Continuous Discharge 1C @ 25℃

Working Temperature Range Charge: 0°C ~ 50°C Discharge: -20°C ~ 50°C

System Parameters

System Size (W x H x D) 4,550 × 2,591 × 2,438 mm

Weight (max) < 8 tonnes

Ingress Protection Degree IP 55

Certification AS/NZS 4777.2, IEC62619, IEC61000, IEC62477, IEC 63056, NRS-097, UN38.3

Altitude 5,000 m(Derating above 3,000 m)

Communication RS485,Ethernet,CAN2.0
